Item	LP - 7.5	LP - 8.0	LP - 8.5	LP - 9.0	Qty	Description

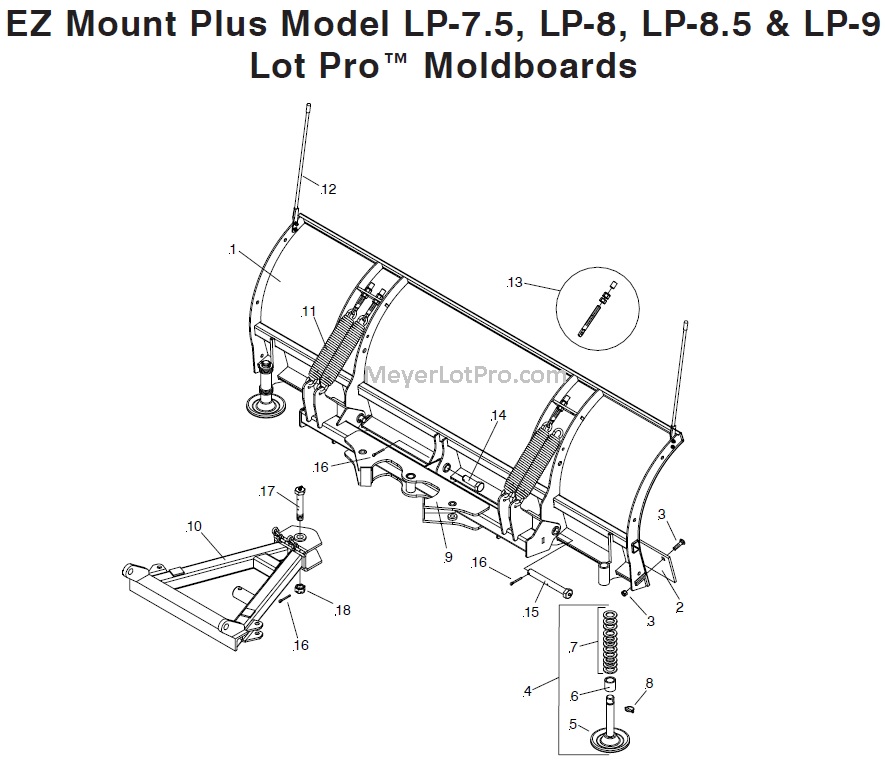

1	09400	09401	09402	09403	1	Moldboard Assembly
2	09796	09133	09134	07259	1	• Cutting Edge
3	08486	---------	---------	---------	1	• Bolt C 1/2-13 x 1-3/4 & Locknut (Kit of 9 each)
3	---------	08692	08692	---------	1	• Bolt C 1/2-13 x 2 & Locknut (Kit of 10 each)
3	---------	---------	---------	08318	1	• Bolt C 5/8-11 x 2-1/4 & Locknut (Kit of 12 each)
4	09362	09362	09362	09362	1	• Mushroom Shoe Casting Assy.
5	12394	12394	12394	12394	1	•• Runner Shoe Casting
6	12449	12449	12449	12449	1	•• Runner Spacer
7	20363	20363	20363	20363	11	•• Flatwasher 1-1/4
8	22083	22083	22083	22083	2	••Lynch Pin 1/4"

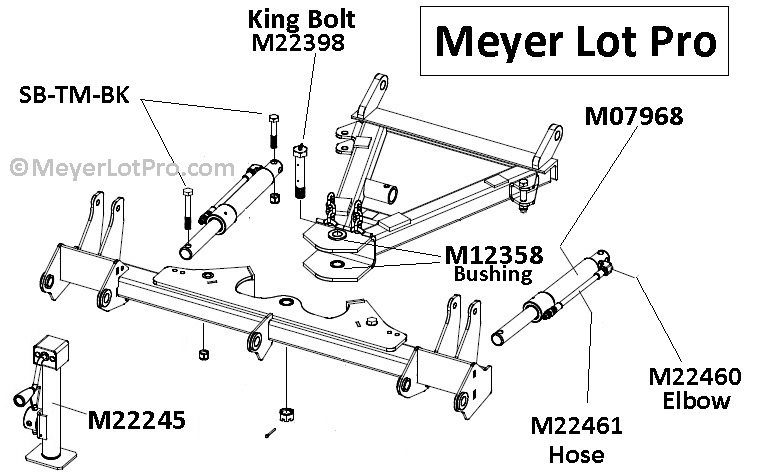

	16547	16547	16547	16547	1	Pivot Bar & A-Frame Carton
9	12750	12750	12750	12750	1	• Pivot Bar LP Series
10	13500E	13500E	13500E	13500E	1	• A-Frame (3-1/2” x 29” x 22-1/4”)
11	07017	07017	07017	07017	4	Trip Spring
12	09917	09917	09917	09917	1	• Plow Marker Kit (Old Part #'s 08852, 811000095)
	08152	08152	08152	08152	1	• Hardware Bag
13	09124	09124	09124	09124	4	•• Eye Bolt w/ Locknut & Cap
14	22331	22331	22331	22331	1	•• Hex Head Pin 1 x 3-5/16”
15	22375	22375	22375	22375	2	•• Pivot Pin 1 x 8-3/4” w/grease fitting
16	20406	20406	20406	20406	4	•• Cotter Pin 3/16 x 1-1/2”
17	22398	22398	22398	22398	1	•• King Pivot Bolt 1-8 x 5-1/2” w/grease fitting
18	22274	22274	22274	22274	1	•• Hex Nut Slotted 1-8

Lot Pro Pivot A Frame Diagram & Parts List
Lot Pro Clevis Lift Frame Diagram & Parts List	MeyerLotPro.com - Main
