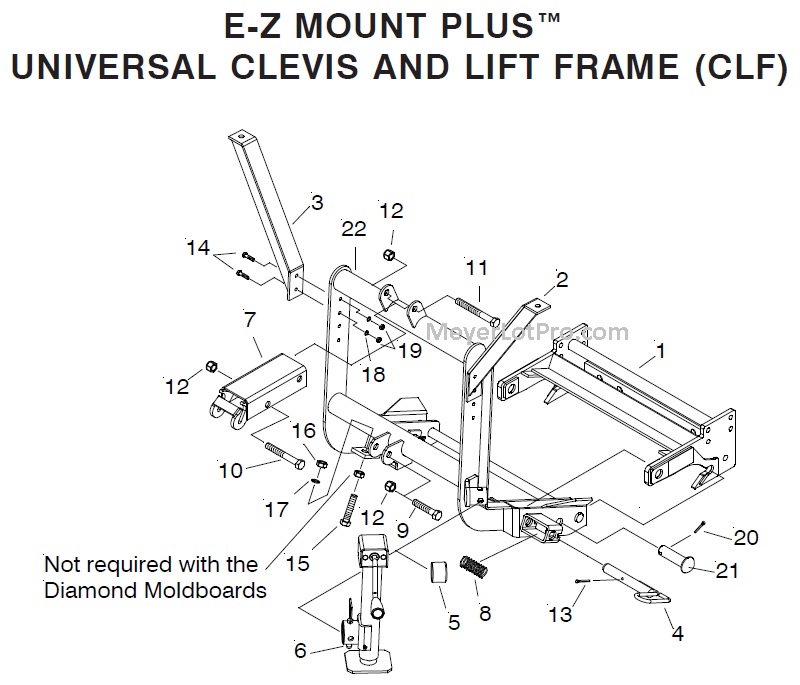

Meyer Lot Pro Clevis Lift Frame Parts Diagram & Parts List


Item Part No. Qty.   Description
1 19370 1 E-Z Mount Plus™ Clevis Frame
2 11751 1 L.H. Light Bracket
3 11752 1 R.H. Light Bracket
4 11859 2 Blue Handle Pin
5 11844 1 Receiver Tube Cap
6 22245 1 Crankstand
7 19592 1 Lift Arm
8 814000005 2 Spring
9 20146 1 Bolt H 5/8-11 x 3-1/4" Gr. 5
10 20152 1 Bolt H 5/8-11 x 5" Gr. 5
11 20153 1 Bolt H 5/8-11 x 5-1/2" Gr. 5
12 20309 3 Locknut Esna 5/8-11
13 20406 2 Cotter Pin 3/16 x 1-1/2"
14 20028 4 Bolt H 5/16-18 x 1-1/4" Gr. 2
15 8500003307001 2 Bolt H 5/8-11 x 3" Full Th'd Cap
16 8501003013 4 Jam Nut 5/8-11
17 20331 2  Lockwasher 5/8
18  20326 4  Lockwasher 5/16
19 20525 4 Hex Nut 5/16-18
20 20420 2 Cotter Pin 1/4 x 2”
21 22436 2 1”DIA X 3” Pin
